DETAILS

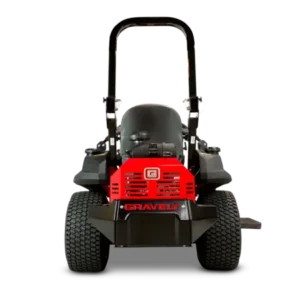

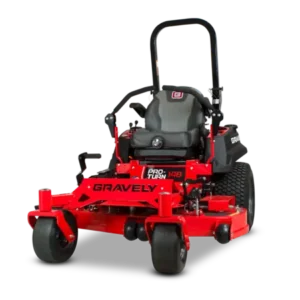

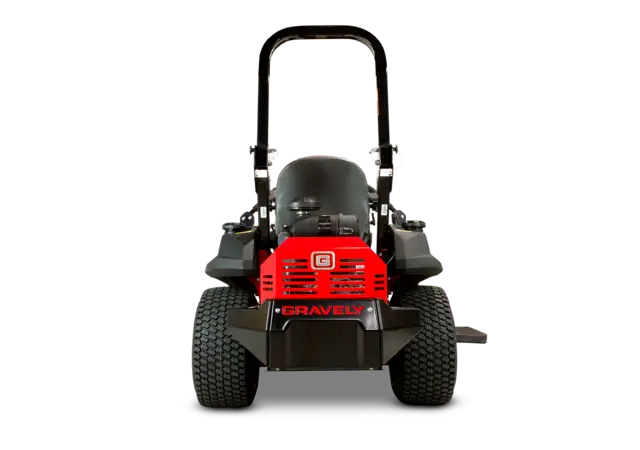

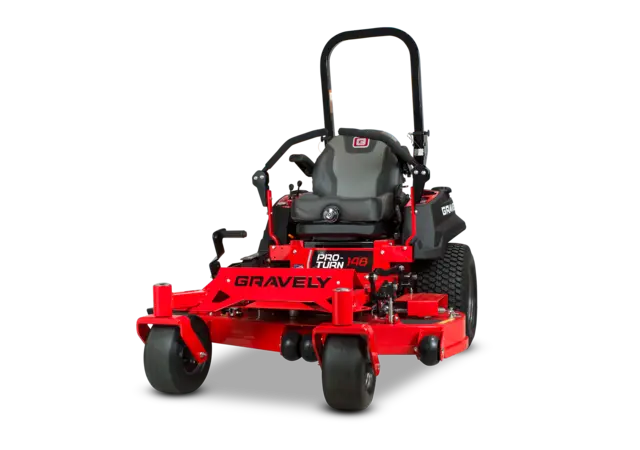

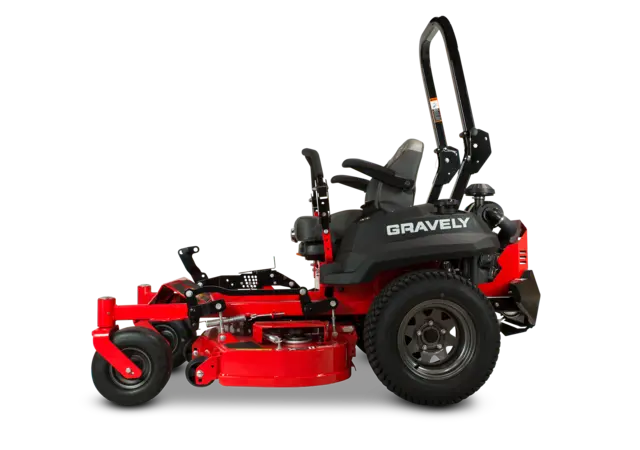

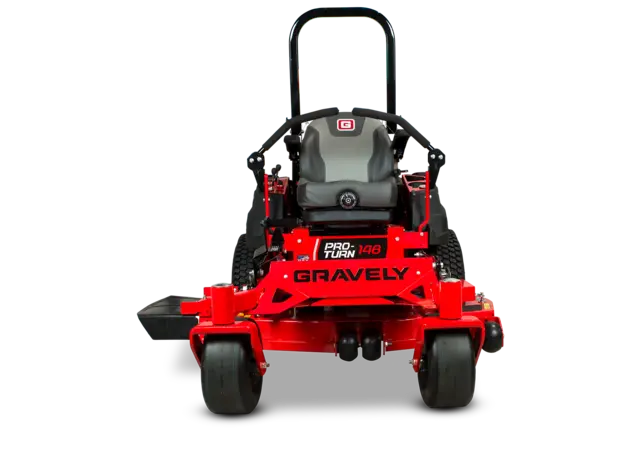

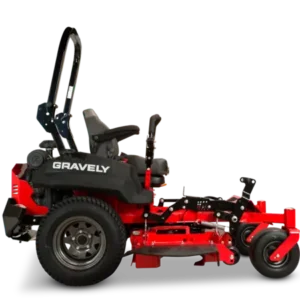

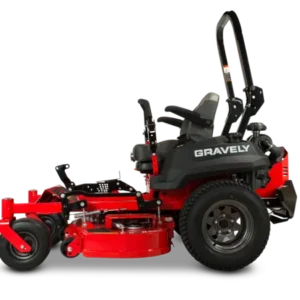

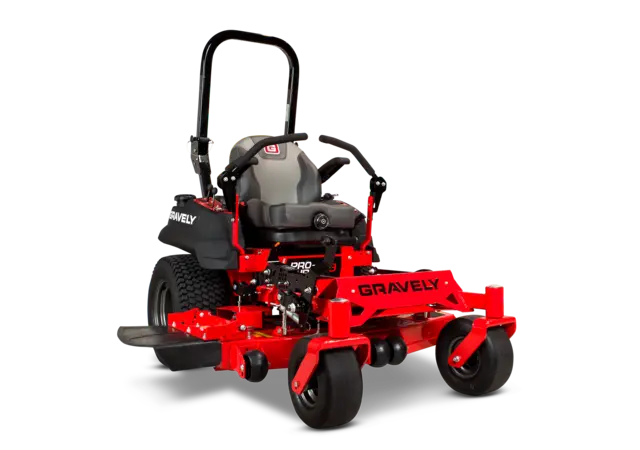

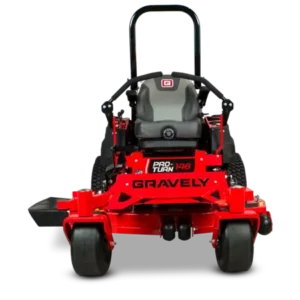

Capable of handling the toughest jobs you can dish out, the Pro-Turn 100 is always ready for more. Consistent cutting results, comfort for the long haul, and a 48” mowing deck make the Pro-Turn great value. There is no job too big or too small for this commercial unit.
Gravely’s exclusive Constant Belt Tension System (CBT) ensures constant belt tension, maintaining consistent blade tip speed and cutting results. This unit’s 7-gauge X Factor II Deck is fabricated from top to bottom, providing peace of mind with its industrial strength. The Pro-Turn 100 includes a full suspension seat that provides improved lateral stability and vibration control, ensuring comfort all day long.
FEATURES
- Constant Belt Tension System that keeps the blade tip speed and cutting results constant.
- A full suspension seat provides improved lateral stability with added vibration control and a 4-inch seat slide for all day comfort.
- X-Factor II Deck is fabricated from top to bottom and provides industrial strength peace of mind.
- 22 hp Kawasaki FX691 V-Twin Engine.
SPECIFICATIONS
All specifications are subject to change without notice.
Domestic Warranty – 5 Year / 1000 Hour Domestic Warranty
Commercial Warranty – 5 Year / 1000 Hour Commercial Warranty
Engine (cc) – 726 cc
Engine – Kawasaki FX691V
Horsepower – 22 hp
Fuel Capacity – 37.7 L
Dry Weight – 481.7 kg
Ground Speed – Forward – 16 km/h
Ground Speed – Reverse – 8 km/h
Brakes- Hand Park Brake
Seat – High Back W/ Full Suspension And Moulded Arm Rests
Hour Meter – Standard
ROPS – Standard
Height – 1727mm With ROPS Up, 1219mm With ROPS Down
Width – 1270mm With Chute Up
Deck System – X-Factor® II Fabricated
Cutting Widths – 48″ (1219mm) cut side discharge
Deck Lift – Foot Operated
Deck Construction – Fabricated 7 Gauge w’ 1/4″ Spindle Reinforcement
Cutting Height(s) – 17 Cutting Positions / 25mm x 127mm
Blade(s) – 3
Blade Tip Speed – 18,000 FPM
Kit – Mulch: Available Optional Accessory
